Wind Turbine Renewable Energy Systems:

Whether it’s a single stand alone wind turbine system for a home or small business, or multiple wind turbine arrays powering a small micro-grid, RJFT provides complete “turn-key” engineered solutions to meet your specific power needs.

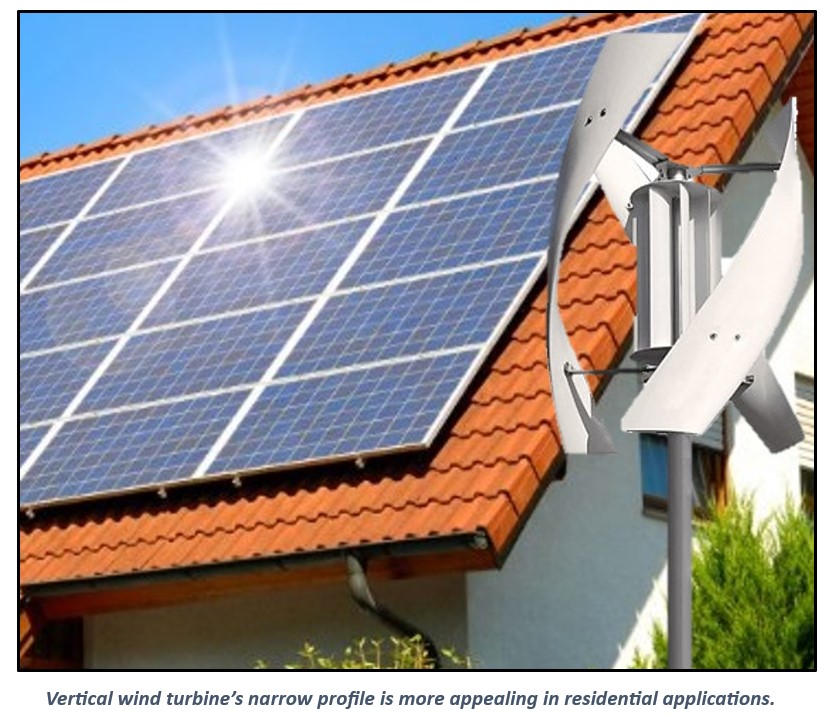

RJFT offer various wind turbine blade configurations and power outputs. We offer both horizontal and vertical blade styles, with maximum rated power output options of 1000w, 1500w, and 2000w as “standard”. Wind turbines with higher power output ratings of 2500w and 3000w are also available upon request. All turbine generators are PMG (3-phase AC) output types with (NdFeB) Neodymium magnets. Available turbine generator output voltages include 24vac, 48vac, 96vac, 120vac, 220vac, and 240vac (based on turbine output power rating).

RJFT wind turbine “smart” battery charge controllers are MPPT type and are available in 12vdc, 24vdc, 48vdc charging outputs as “standard”. We can also configure 72vdc, 96vdc and 120vdc charging outputs to match higher voltage BES systems. Each MPPT charge controller provides “automatic” dynamic braking to protect your wind turbine from damage during storms. The MPPT charge controller also monitors battery SOC, and prevents battery overcharging. Fully compatible with LiFePO4 battery types.

RJFT also offers separate Universal OEM Turbine Alternators for custom VAWT, HAWT, and hydro-electric applications. We offer a wide range of power outputs from (100w) to (10kW) at voltages from 12vac to 420vac (3 Phase). See product data sheets below:

Contact our Technical Support team to discuss your particular application. See specification data sheets below:
