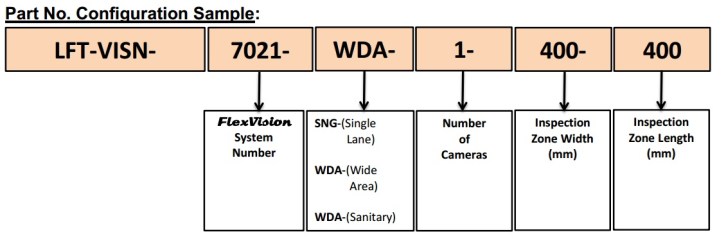

FlexVision Inspection System PNs: (The RJFT family of FlexVision Inspection Systems can be easily integrated into material handling applications for the pharma-ceutical, medical, electronics, cosmetics, beverage, bottling, canning, and food processing industries. There are a variety of models to choose from to meet your process needs.)

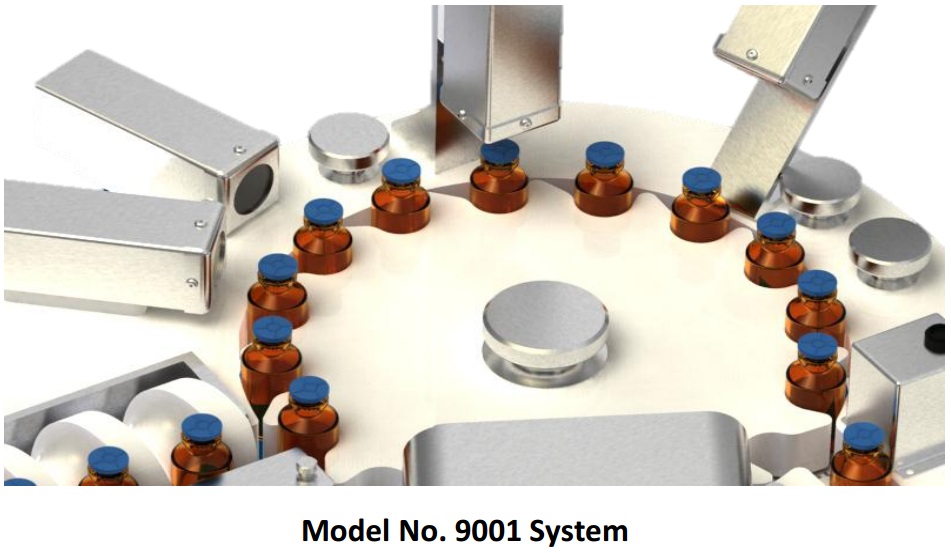

Sanitary Rotary Multi-Station Quad Camera System: (Model No. 9001 System) This sanitary multi-station camera inspection system has (4) cameras (standard) with a vast array of embedded inspection algorithms , feed screw infeed, star wheel product transfer through the inspection zones, product detection sensors, syncronized speed transfer conveyors, failed product eject system, .
Ethernet interface included. The system is designed and constructed to meet sanitary Class 100 cGMPs.





Multizone (200mm x 200mm) Single Camera System: (Model No. 7011 System)This multizone (200mm x 200mm) area inspection system has a single camera (standard), a vast array of embedded inspection algorithms , high speed programmable X-Y cartesian robot, product detection sensors, and a variable speed transfer conveyor. Ethernet interface included.

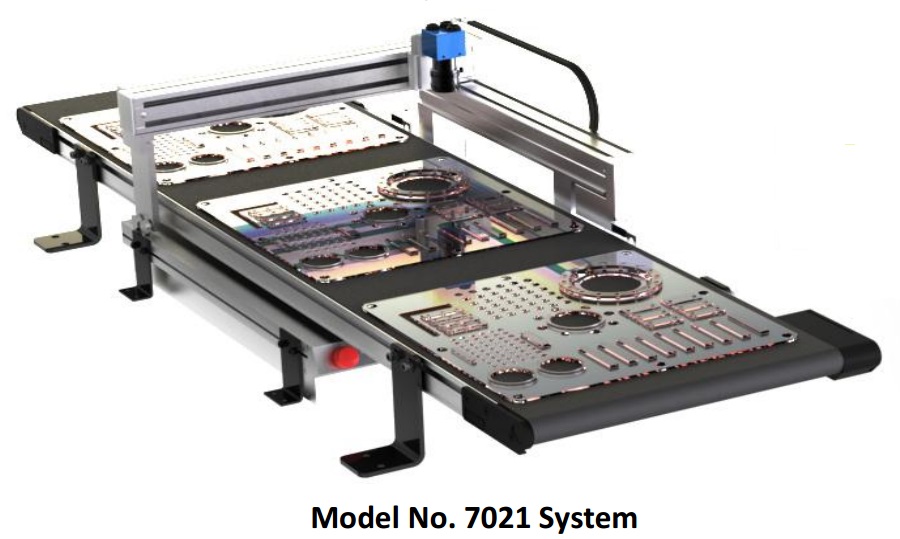

Multizone (400mm x 400mm) Single Camera System: (Model No. 7021 System) This multizone (400mm x 400mm) area inspection system has a single camera (standard), a vast array of embedded inspection algorithms , high speed programmable X-Y cartesian robot, product detection sensors, and a variable speed transfer conveyor. Ethernet interface included.

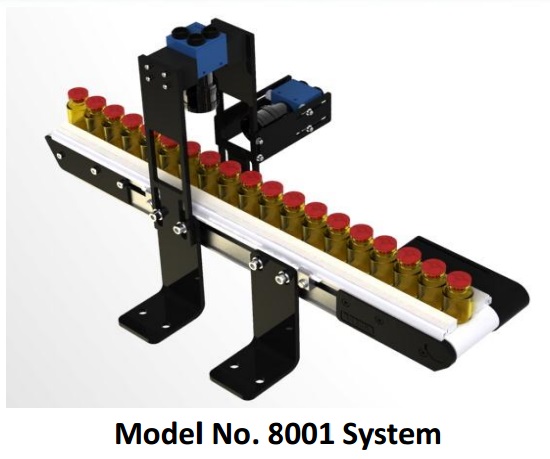

Single Lane- Fixed Camera System: (Model No. 8001 System) This basic system includes (2) inspection cameras (standard), a vast array of embedded inspection algorithms , adjustable camera mounts, product detection sensors, and a variable speed transfer conveyor. (3.00″ (76.2mm) wide product (standard), other width conveyors are available) Ethernet interface included.
